AGV Solutions



EMD is proud to announce that we are a full service dealer for the Rangerman AGV from the Canadian Manufacturer Rovibec!

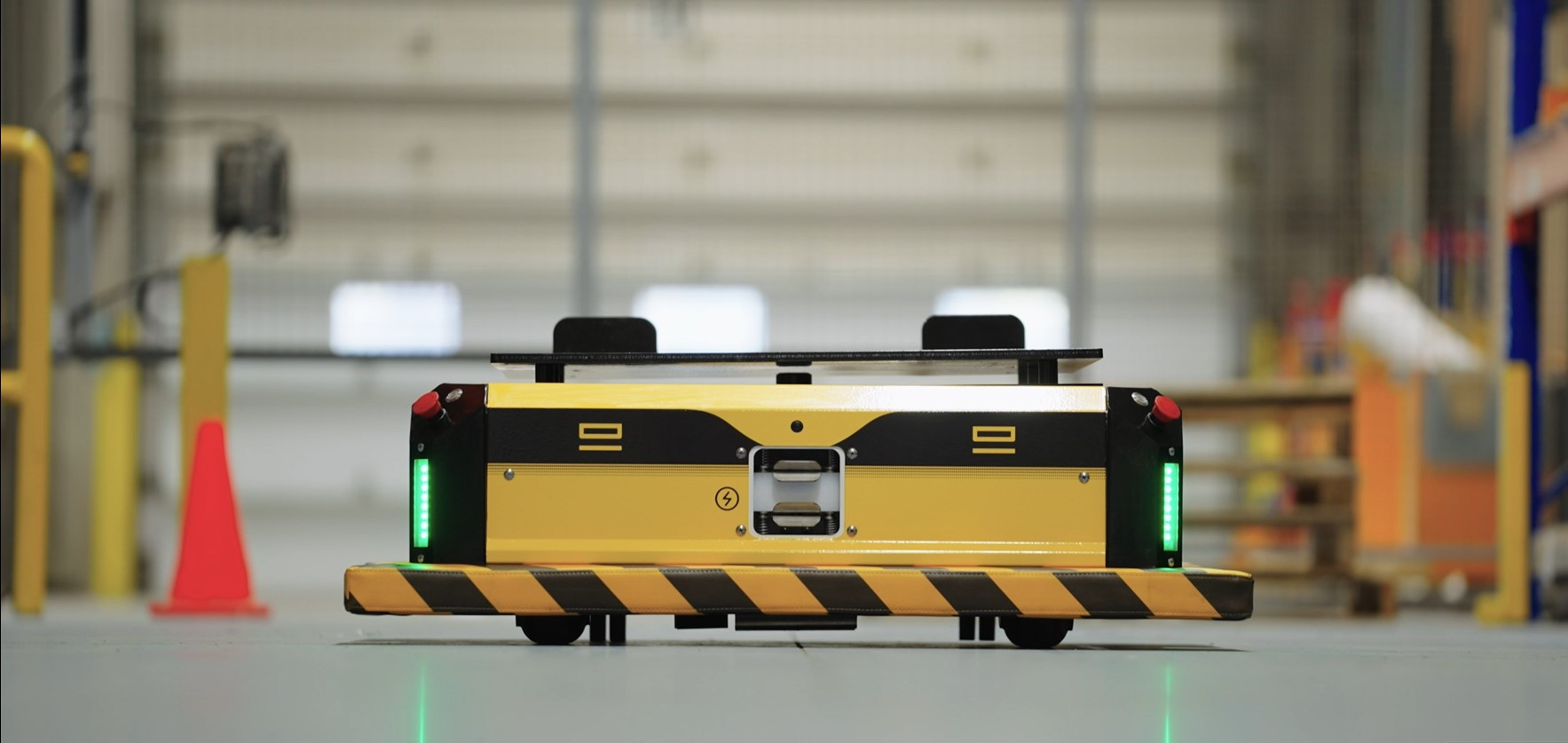

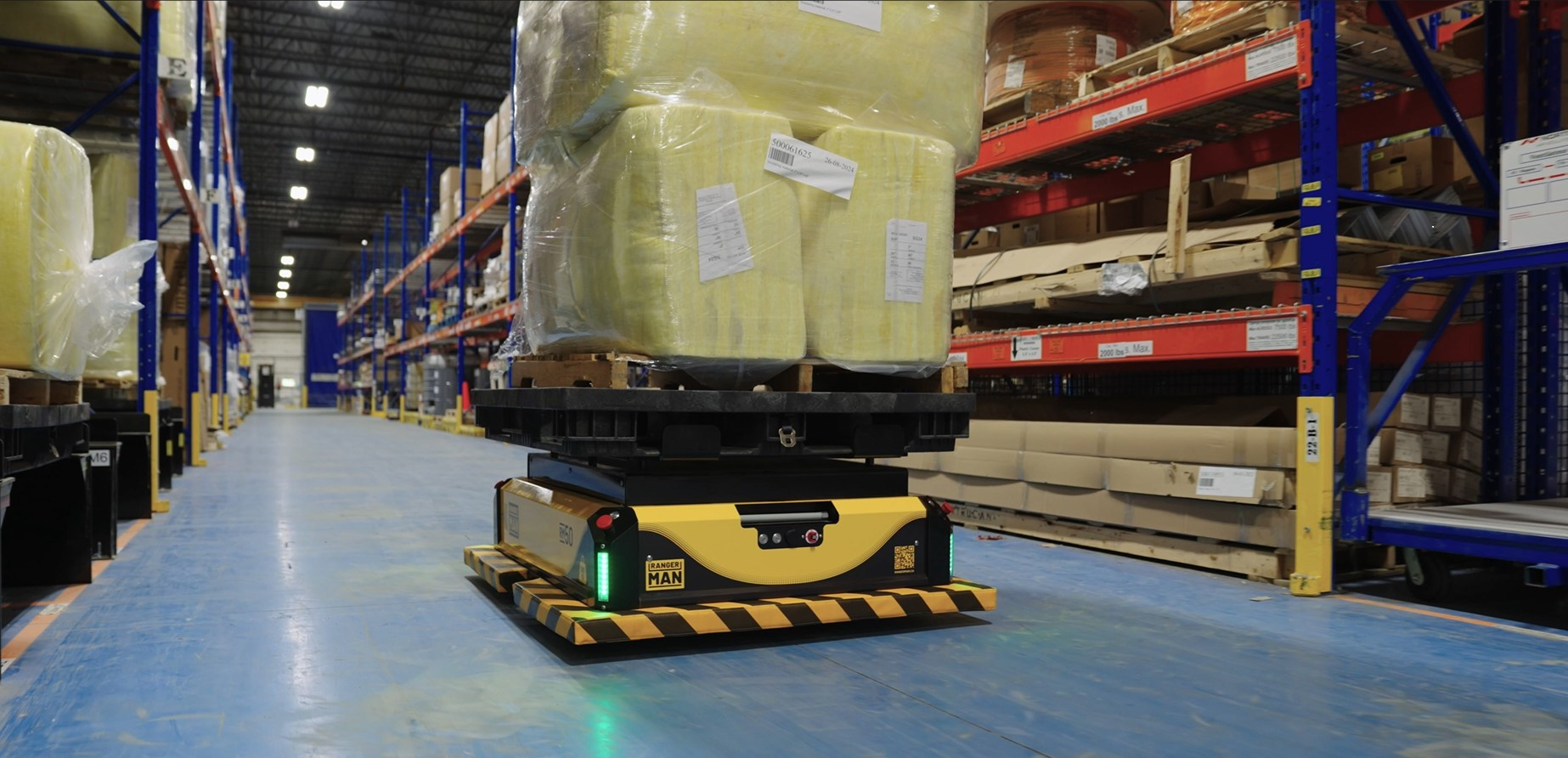

  • The Rangerman AGV is a simple, reliable cost effective solition ideal of Small and Medium Enterprises (SMEs).

  • Quick and easy to deploy, operate and maintain.

  • Please contact us for pricing and details.

EMD offers:

  • Sales
  • Tooling customization
  • Installation
  • Maintenance and training.
  • A demo unit in our Guelph facility for tours and testing.

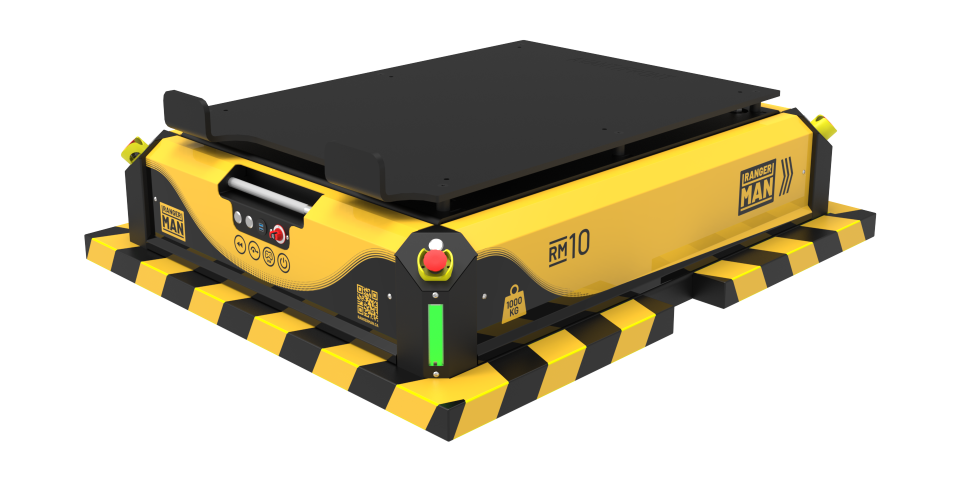

Rangerman RM10 specifications

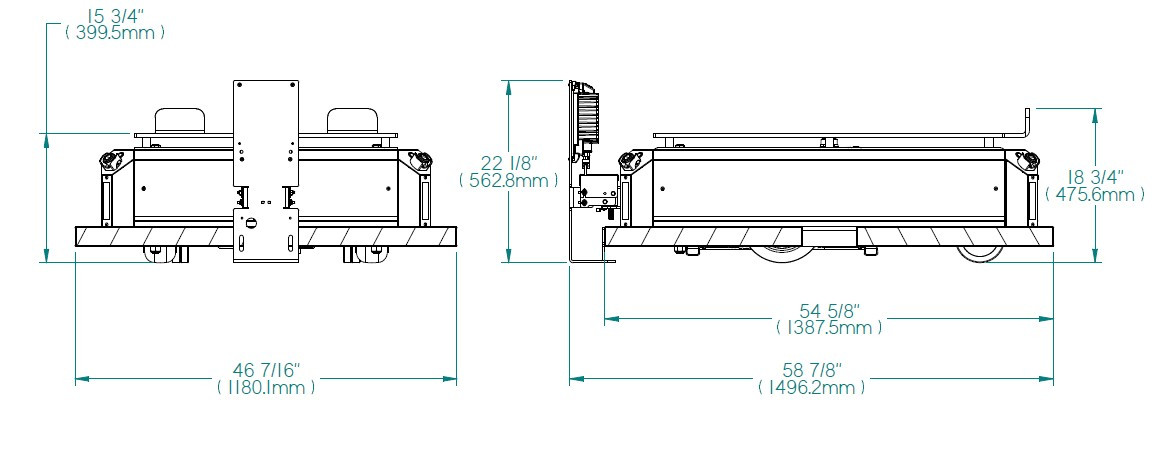

Dimensions

  • Length: 54-5/8" (1387mm)

  • Width: 46-7/16" (1180mm)

  • Height 15-34" (400mm)

  • Mass 1000lbs (454kg)



Performance

  • Speed: 100ft/min (0.5m/s)

  • Lifting Capacity: 2204 lbs (1000kg)

  • Lifting platform travel: 3-5/16" (100mm)

  • Operation time 16h/24h

  • Navigation: via 1/4"x1/2" embedded magnetic tape

  • Safety: Pre-collision sensors, 360° LIDAR and multiple e-stop buttons



Power and communications

  • User friendly web interface

  • Battery: 24VDC 100 amp/hr lithium

  • Drive: 2x1/2 hp electric

  • Independent network (Server and Wi-Fi)

  • API connectivity available
